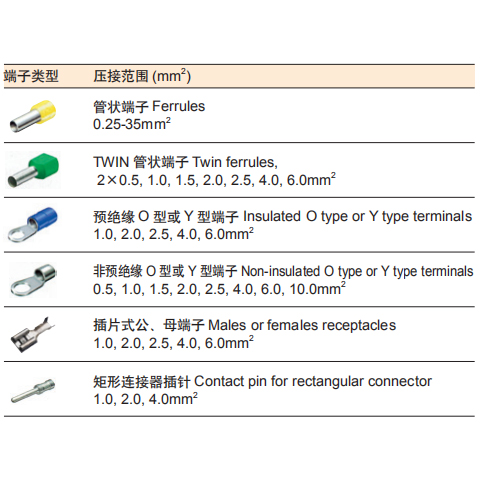

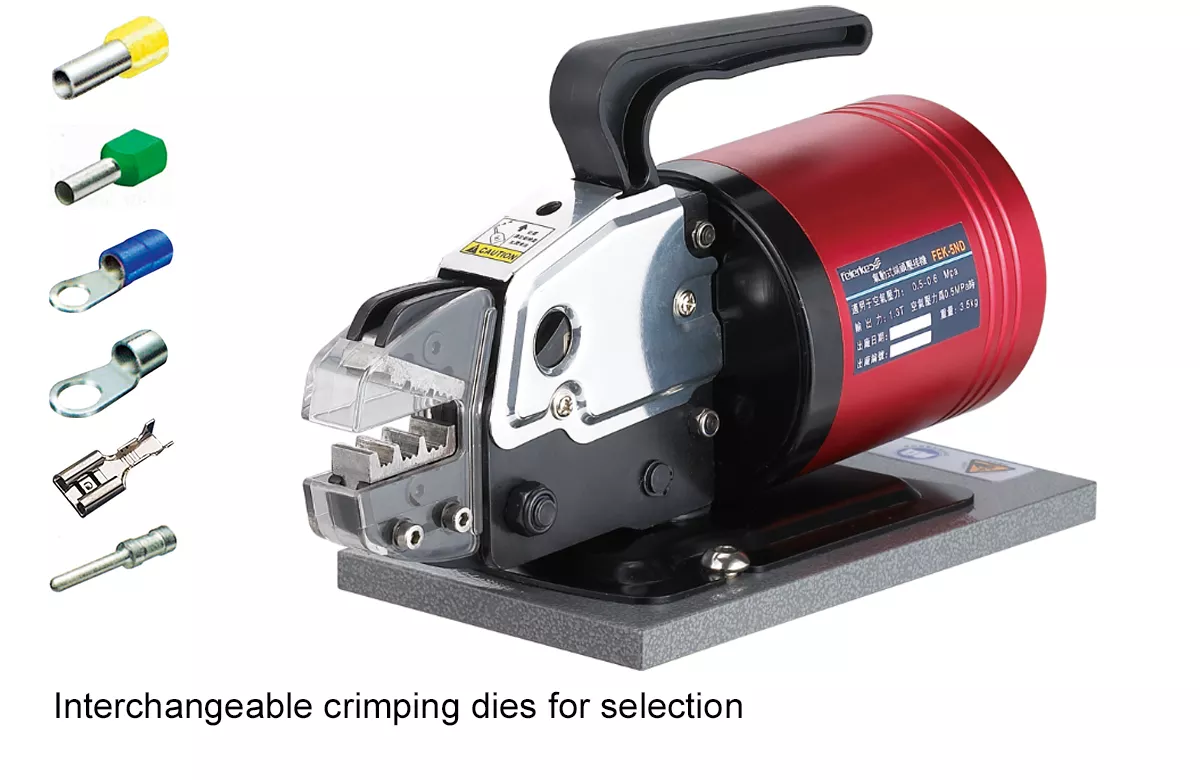

■ Multiple purpose, it can crimp different terminals with different crimping die sets.

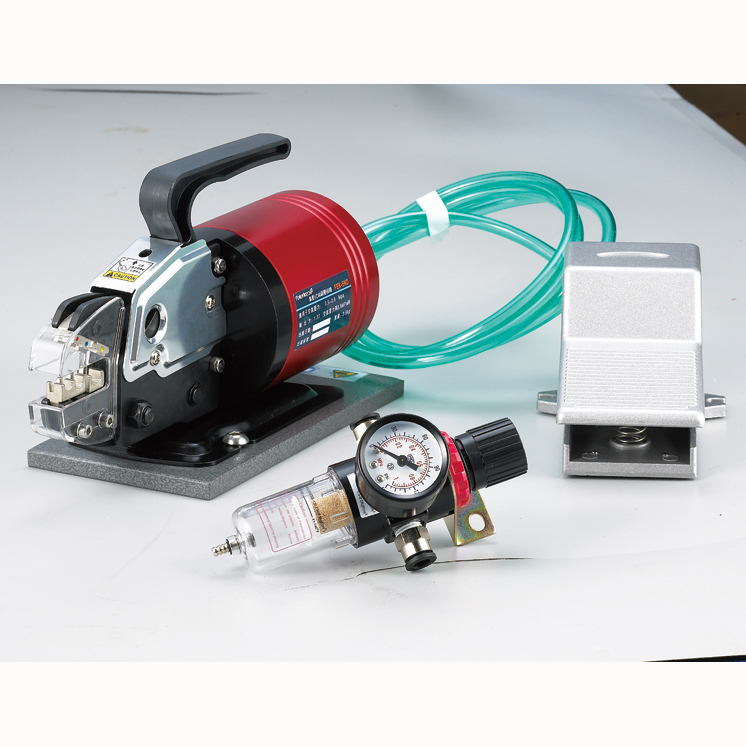

■ The common type or pressure protected type foot switches are for selection. The machine is equipped with pressure regulator to ensure precise crimping.
■ Light, portable, easy and quick crimping to ensure high efficiency operation. It can crimp about 1200 times per hour.
|
SV.040101 |
|
|
Air pressure range |
0.5-0.6MPa |
|
Air flow |
34L/min |
|
Output |
1.3T(0.5MPa at 0.5MPa) |
|
Overall dimension |
230×187×100mm |
|
Weight |
2.0Kg |
